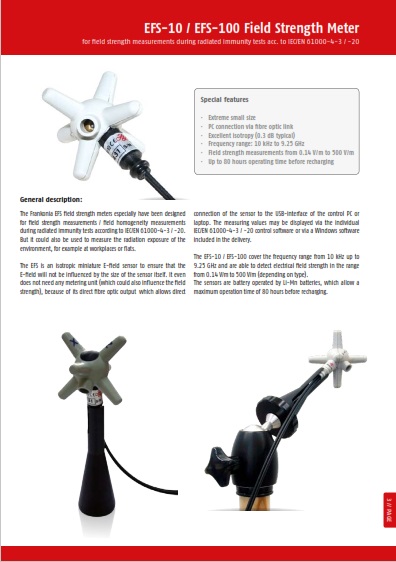

The Frankonia EFS field strength meters especially have been designed for field strength measurements / field homogeneity measurements during radiated immunity tests according to IEC/EN 61000-4-3 / -20. But it could also be used to measure the radiation exposure of the environment, for example at workplaces or flats.
The EFS is an isotropic miniature E-field sensor to ensure that the E-field will not be influenced by the size of the sensor itself. It even does not need any metering unit (which could also influence the field strength), because of its direct fibre optic output which allows direct connection of the sensor to the USB-interface of the control PC or laptop. The measuring values may be displayed via the individual IEC/EN 61000-4-3 / -20 control software or via a Windows software included in the delivery.
The EFS-10 / EFS-100 cover the frequency range from 10 kHz up to 9.25 GHz and are able to detect electrical field strength in the range from 0.14 V/m to 500 V/m (depending on type). The sensors are battery operated by Li-Mn batteries, which allow a maximum operation time of 80 hours before recharging.
Please find a detailed description here:
