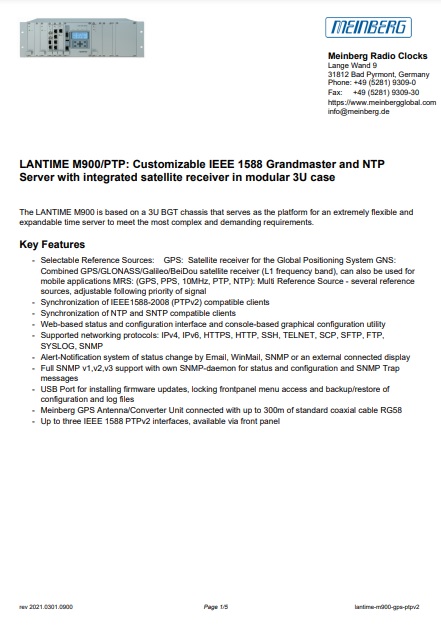

LANTIME M900/PTP: Customizable IEEE 1588 Grandmaster and NTP Server with integrated satellite receiver in modular 3U case

The LANTIME M900 is based on a 3U BGT chassis that serves as the platform for an extremely flexible and expandable time server to meet the most complex and demanding requirements.

Key Features

• Selectable Reference Sources:
• GPS: Satellite receiver for the Global Positioning System
• GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver (L1 frequency band), can also be used for mobile applications
• MRS: (GPS, PPS, 10MHz, PTP, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal
• Synchronization of IEEE1588-2008 (PTPv2) compatible clients
• Synchronization of NTP and SNTP compatible clients
• Web-based status and configuration interface and console-based graphical configuration utility
• Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
• Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
• Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
• USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files
• Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
• Up to three IEEE 1588 PTPv2 interfaces, available via front panel
