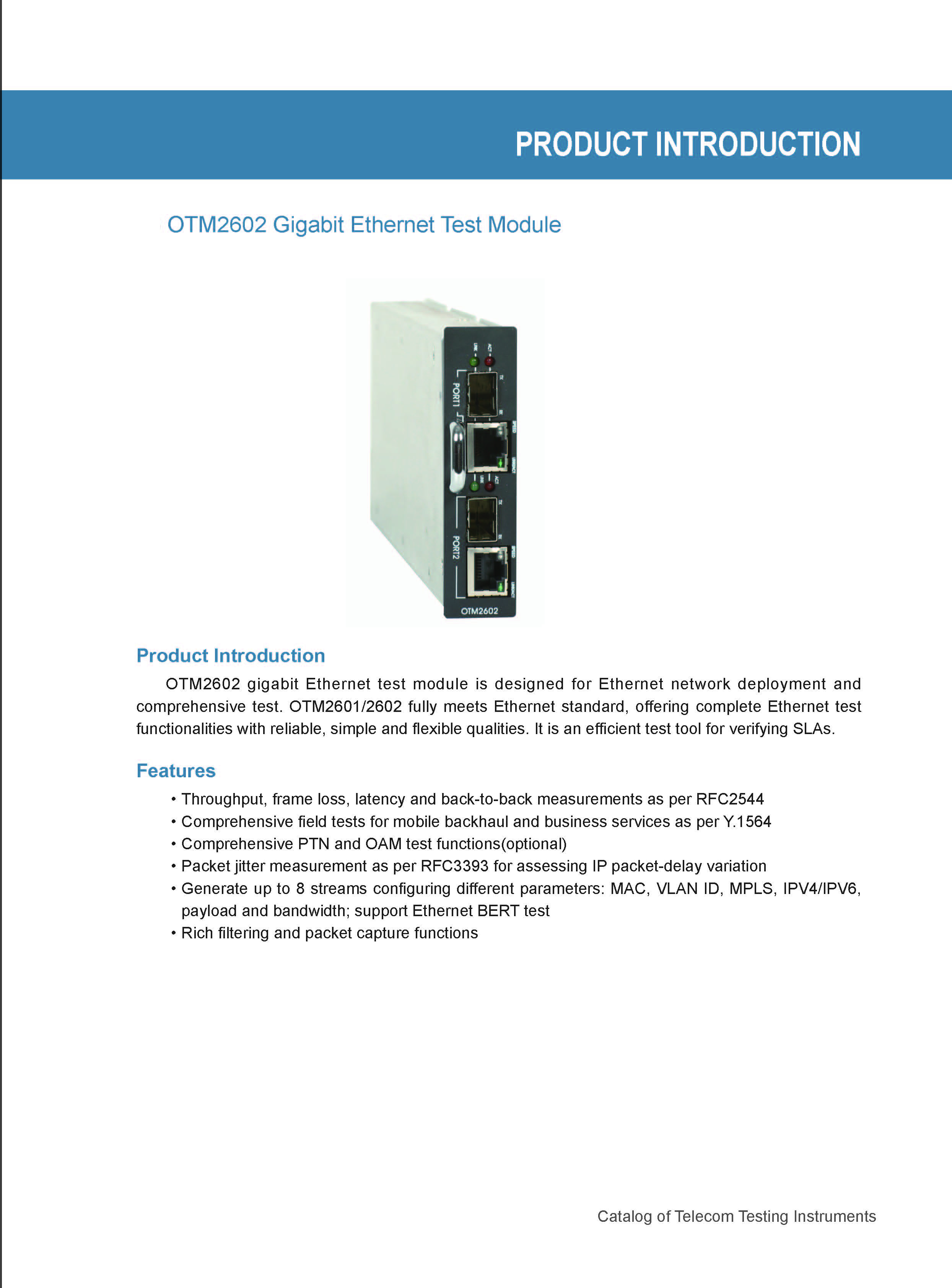

The Gigabit Ethernet module - OTM2602 is a powerful tool for service installation and maintenance, with dual ports for live, bidirectional monitoring of network performance and conformance to Service Level Agreement.
Highlights
Accurate RFC2544 test
Bit-error-rate test (BERT)
Pass/fail result with user-definable threshold by LED indicator
Configurable VLAN and Q-in-Q capability
QoS, ToS and diffserv capabilities
Intelligent network autodiscovery for simplifying loopback test
Applications
Perform assessment of Carrier Ethernet services
Installation, activation and maintenance of metro Ethernet networks
Deployment of activated Ethernet (point-to-point) access services
Using with SDH modules which support EOS together for MSTP/MSPP installation, commissioning and service turn-up
Key Features
Electrical and optical testing in one module
Full 10/100/1000 Mb/s and GigE line rate traffic generation
Accurate RFC2544 tests: throughput, back-to-back, frame loss and latency
Layer 1/2 BERT testing with a wide range of standard and customizable patterns
RFC3393-based jitter test
IP verification through Ping, Traceroute, ARP, Echo response and IP throughput across a routed network
Generate up to 8 independent traffic flows with different MAC address, VLAN tag, MPLS tag, IP address, payload and bandwidth configurations
