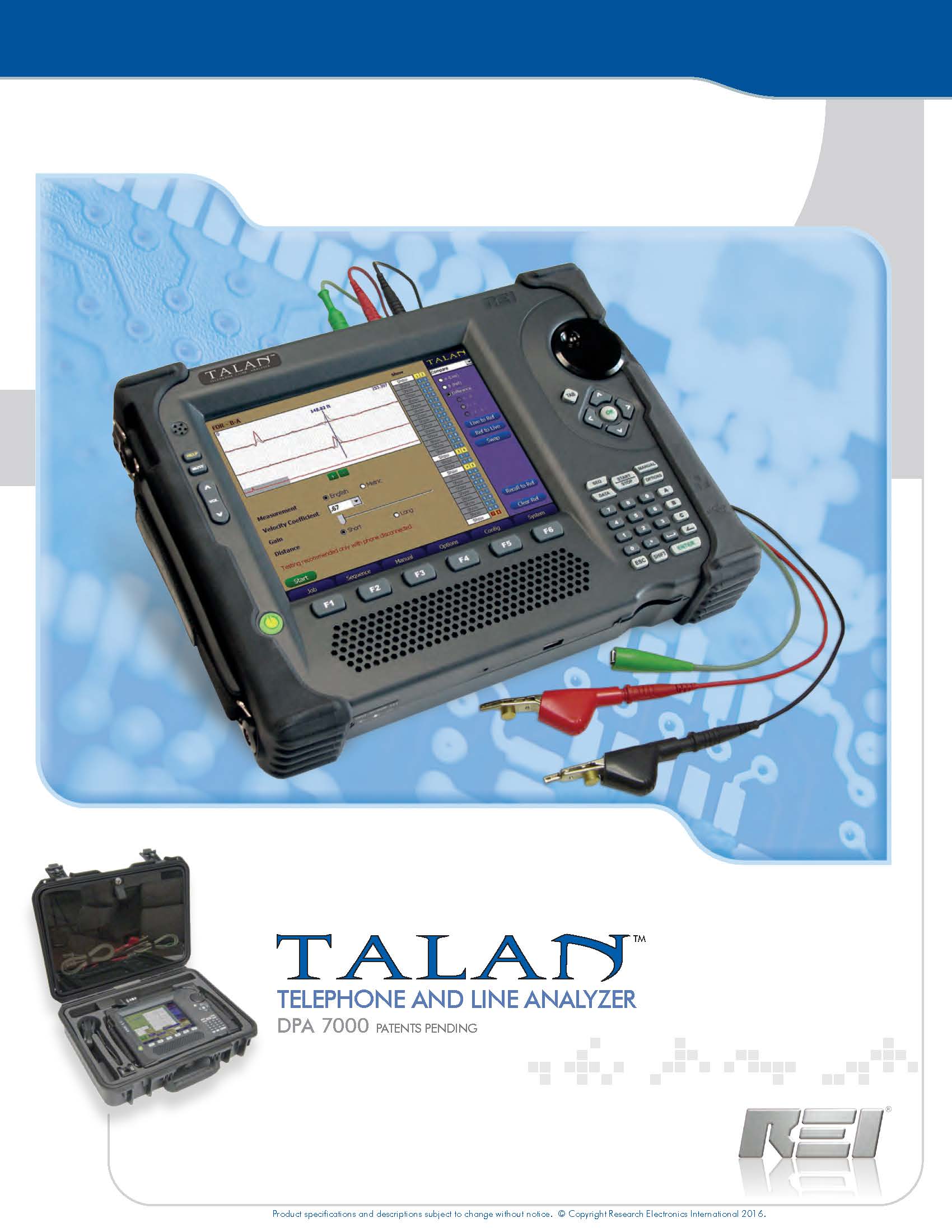

REI TALAN Telephone and Line Analyzer

The TALAN Telephone and Line Analyzer provides a complete integrated suite of tools to analyze, inspect, and test digital telephone lines (and other wiring) for taps and eavesdropping devices. New VoIP analysis software allows users to test internet protocol packet traffic for source and destination addresses, header type, and packet statistics.

Efficiency: compares the results of multiple tests on multiple phone lines to quickly identify threatening anomalies

Usability: combines several countermeasure testing capabilities into a single piece of equipment (voltage, current, resistance, capacitance, non-linear junction detection, frequency domain reflectometry, and digital demodulation technology)

Portability: weighs only six pounds and data can be exported for further analysis and reporting

Features & Benefits

• Combines multiple testing capabilities into a single piece of equipment
• Automatic internal pair switching matrix performs tests on all pair combinations
• Quickly performs common test functions including:
• Multimeter tests (voltage, current, resistance, capacitance)
• RF Broadband Detector (up to 8 GHz)
• Spectrum Analyzer (up to 85 MHz)
• High Gain Audio Amplifier
• Bias Generator ±80 VDC
• Audio Oscilloscope with active input (20 Hz to 20 KHz)
• Digital demodulation available to confirm that the telephone line is not passing audio
• Frequency Domain Reflectometer (FDR) to check for taps on the line
• Non-Linear Junction Detector (NLJD) functionality to detect electronics connected to a line
• NLJD line trace probe for tracing wires and locating electronics
• Multi-test database system provides the ability to perform multiple tests, on all pair combinations, storing data in a database for comparison against other lines and historical comparison
