Low power supply rails, a main part of the PXI, cPCI and PCI equipment, are a common cause for an inability to produce high voltage output. Tabor Electronics’ new amplifiers convert the supply rails to higher voltage suitable for signals up to 40Vp-p, thus solving thit problem. The PCI & PXI Signal Amplifiers line operates in conjunction with Tabor’s arbitrary waveform generators providing the ultimate solution for PXI and PCI, high-voltage, wideband applications.

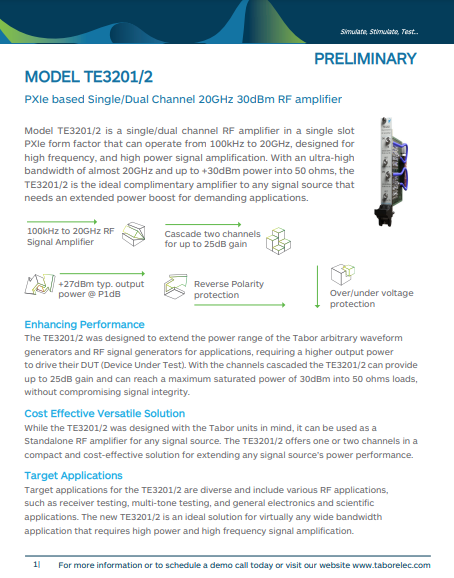

PXIe based Single Channel 20GHz 30dBm RF amplifier
Model TE3201 is a single channel RF amplifier in a single slot PXIe form factor that can operate from 100kHz to 20GHz, designed for high frequency, and high power signal amplification. With an ultra-high bandwidth of almost 20GHz and up to +30dBm power into 50 ohms, the TE3201/2 is the ideal complimentary amplifier to any signal source that needs an extended power boost for demanding applications.
PXIe based Dual Channel 20GHz 30dBm RF amplifier
Model TE3202 is a dual channel RF amplifier in a single slot PXIe form factor that can operate from 100kHz to 20GHz, designed for high frequency, and high power signal amplification. With an ultra-high bandwidth of almost 20GHz and up to +30dBm power into 50 ohms, the TE3201/2 is the ideal complimentary amplifier to any signal source that needs an extended power boost for demanding applications.

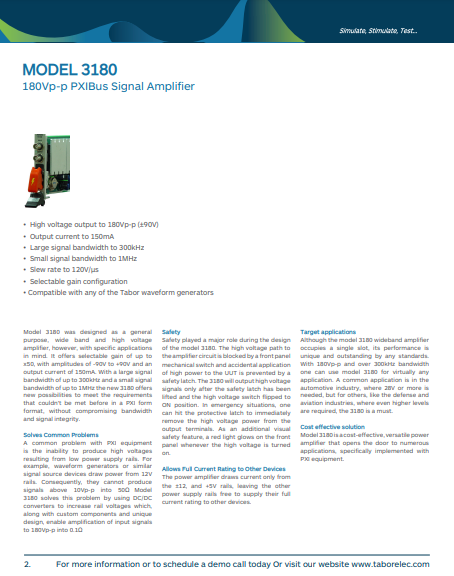

180Vp-p PXI Signal Amplifier
Model 3180 was designed as a general purpose, wide band and high voltage amplifier, however, with specific applications in mind. It offers selectable gain of up to x50, with amplitudes of -90V to +90V and an output current of 150mA. With a large signal bandwidth of up to 300kHz and a small signal bandwidth of up to 1MHz the new TE3180 offers new possibilities to meet the requirements that couldn’t be met before in a PXI form format, without compromising bandwidth and signal integrity.
40Vp-p PXIBus Signal Amplifier
Model 3222 is a 3U single-slot, PXI-based power amplifier designed for signal amplification. Offering unmatched signal purity, Model 3222 amplifies signals from dc to over 20 MHz. The unit has a fixed gain of x10, however, the same amplifier is available with custom gain, with no signal purity or performance degradation.

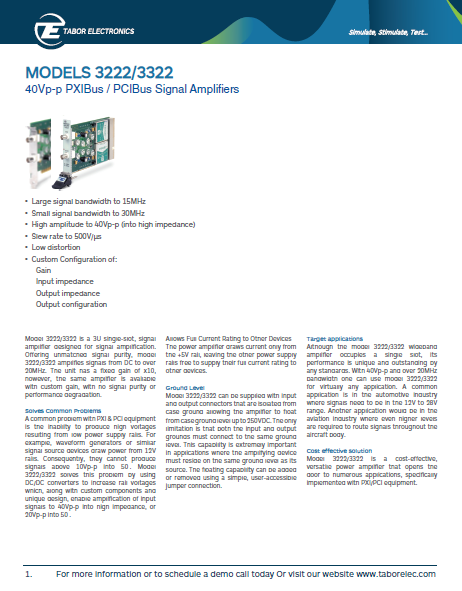

40Vp-p PCIBus Signal Amplifier
Model 3322 is a 3U single-slot, PCI-based power amplifier designed for signal amplification. Offering unmatched signal purity, Model 3322 amplifies signals from dc to over 20 MHz. The unit has a fixed gain of x10, however, the same amplifier is available with custom gain, with no signal purity or performance degradation.
