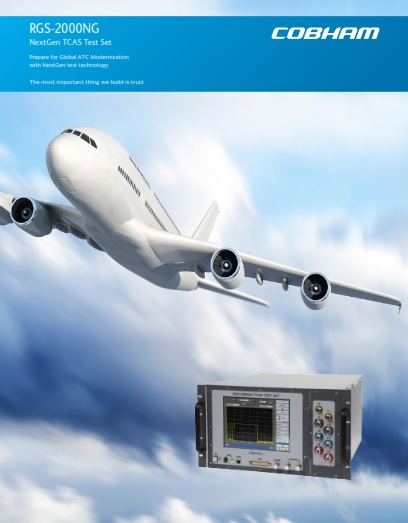

VIAVI Solutions/Aeroflex RGS-2000NG TCAS Test Set

OVERVIEW

The RGS-2000NG TCAS Test Set is an RF signal generator/receiver for testing TCAS (Traffic Alert and Collision Avoidance System) with an option available for testing transponder LRUs. The RGS-2000NG was designed with modern software-driven digital modulation technology and is the RGS-2000 replacement for engineering development, design validation, manufacturing and return-to-service testing.

FEATURES

• More test capability than any tester in the market, all packed into one box
• 10.4 inch touch screen LCD display for operator control of all test set capabilities or can be remotely controlled via GPIB or Ethernet
• Simulates 32 dynamic/400 static intruders
• ADS-B squitter encode/decode
• Four port antenna simulation
• Hybrid surveillance
• Six independent transmitters and two receivers
• Data parsing for analysis
• Pulse and frequency measurement
• Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
• Transponder test option for Modes A, C, S
